Crucial Considerations for Installing a Car Hoist in Your Garage

If you are thinking about the installation of a car hoist in your garage, it is essential to ensure that your concrete floor meets specific standards. A solid and stable foundation is not only necessary for the effective operation of the hoist but also vital for the safety of your vehicles and anyone who is using the equipment. By preparing correctly and following established guidelines, you can significantly improve both the performance and longevity of the hoist, making your garage a safer and more efficient workspace.

Most car hoists necessitate a concrete slab that measures at least 100mm (4 inches) in thickness. This measurement is crucial as it allows for the even distribution of weight from the vehicle and the hoist, thereby reducing the risk of cracking or sinking over time. For heavier-duty hoists, it is best to consider a thicker concrete slab, potentially increasing to 150mm (6 inches), to ensure optimal performance, safety, and durability over the years.

Comprehensive Steps for Determining the Correct Concrete Thickness for Your Car Hoist

The thickness of your concrete floor is a fundamental aspect in the safe installation and operation of a car hoist. Several key factors need to be evaluated when determining the appropriate depth for your slab to ensure it can support the loads it will bear during use. Understanding these elements can help you avoid costly errors and enhance the safety of your garage environment.

Evaluating Load Capacity for Your Car Hoist Setup

Car hoists exert significant stress on the concrete floor beneath them. Therefore, it is crucial to understand the total weight that your concrete floor must support. This consideration includes not only the weight of the vehicle but also the weight of the hoist itself, which can contribute significantly to the load on the floor.

A standard passenger car usually weighs between 1,500 to 2,000 kg, while the hoist can add an extra 500 to 1,000 kg. Additionally, it is wise to factor in extra weight as a safety margin to ensure the structure can manage any unforeseen circumstances that may arise during operation.

For most residential garages, a concrete thickness between 100 mm and 150 mm is generally sufficient. However, if you intend to lift significantly heavier vehicles, you may need to consider a thicker slab to guarantee safety and stability throughout the operation.

Consulting with a structural engineer is a prudent choice. These professionals have the expertise to provide personalized advice and help you calculate the exact thickness required based on your specific circumstances and needs, ensuring a safe setup.

Comparing Different Types of Car Hoists and Their Concrete Thickness Needs

It is essential to recognize that various types of car hoists come with unique requirements regarding concrete thickness. Two-post lifts and four-post lifts are two of the most popular options for homeowners looking to incorporate a car hoist into their garage.

Two-post lifts typically place pressure on specific points, necessitating a thicker concrete slab, often around 150 mm or more, to effectively accommodate the concentrated load and ensure stability.

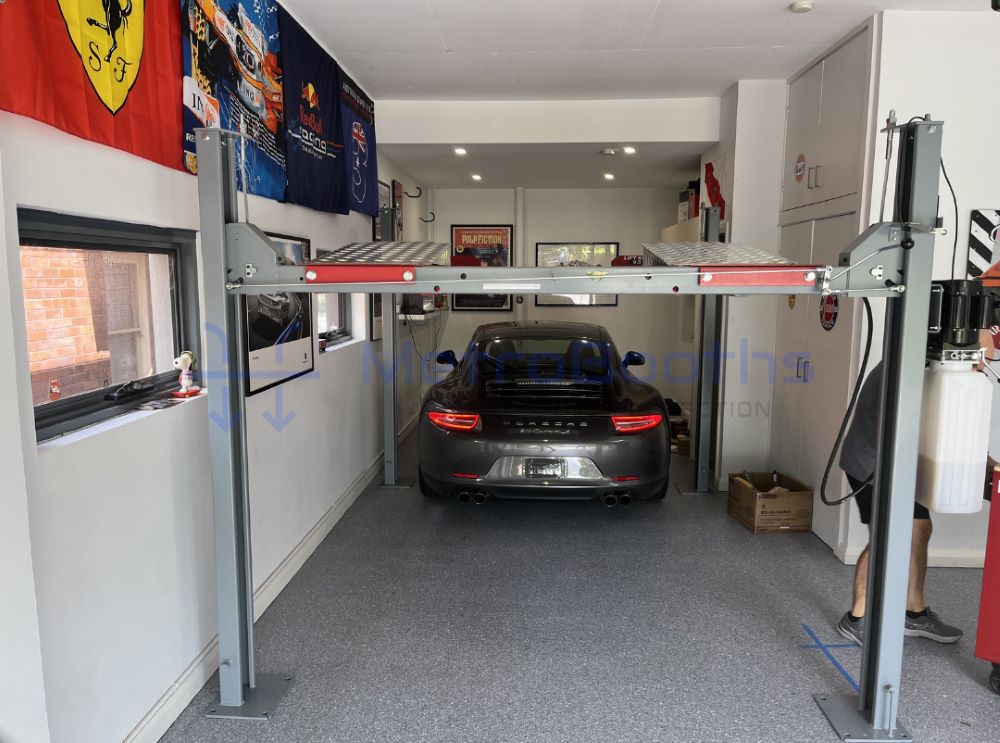

On the other hand, four-post lifts distribute weight more evenly over a larger area, allowing them to function effectively with a slightly thinner slab, generally within the range of 100 mm to 125 mm. This understanding is vital as you plan and install your hoist system.

Always refer to the manufacturer’s specifications for the hoist you are considering, as they will specify the minimum concrete thickness required for safe and efficient operation. Adhering to these guidelines is crucial for achieving optimal performance and enhancing the longevity of your equipment.

Bear in mind that these recommendations are general guidelines. Your specific requirements may vary based on the layout of your garage and the types of vehicles you intend to lift.

Recognizing the Importance of Concrete Strength and Reinforcement Techniques

The strength of your concrete is equally as important as its thickness. Stronger concrete can often be successfully utilized at a thinner depth while still providing adequate support for heavy loads. This is especially relevant in the context of installing a car hoist.

It is recommended to use concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry experts advocate for concrete with a strength of up to 32 MPa for applications that involve heavy-duty use and frequent vehicle lifting, ensuring safety and reliability.

Incorporating reinforcement techniques is essential for significantly bolstering the durability of your concrete. Adding steel mesh or rebar can greatly enhance the overall strength of your concrete floor, which might allow you to use a thinner slab while still ensuring it can effectively support heavy loads during operation.

For most residential garages, SL82 mesh is a reliable option. It provides sufficient strength for the majority of car hoists without incurring excessive costs, making it an important consideration for budget-conscious homeowners.

If you are worried about potential cracking, consider integrating fibers into your concrete mix. This addition can help mitigate the formation and progression of small cracks over time, thereby enhancing the longevity of your installation and ensuring a safe work environment.

Essential Installation Factors for Ensuring Effective Car Hoist Operation

When it comes to installing a car hoist, thorough site preparation and diligent floor maintenance are of utmost importance. By paying careful attention to concrete specifications and ensuring proper floor care, you can guarantee the safe and prolonged operation of your hoist, ultimately safeguarding your investment and ensuring a reliable workspace.

Important Site Preparation and Concrete Pouring Techniques for Car Hoist Installation

Before proceeding with the installation of your car hoist, it is vital to verify that your concrete floor meets all necessary specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Furthermore, the slab must be perfectly level and free from any cracks to ensure optimal performance and safety during use.

For new concrete pours, it is essential to utilize steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability during operation.

Avoid placing the hoist over expansion joints or any weak areas within the concrete. If you are uncertain about the strength and integrity of your floor, it is highly advisable to consult a professional who can accurately assess its condition and offer tailored recommendations.

Vital Ongoing Maintenance After Your Car Hoist Installation

Once your car hoist is installed, it is critical to regularly monitor the condition of the concrete surrounding it. Be vigilant for any cracks, chips, or signs of stress, addressing any issues promptly to avoid larger complications that could impact the functionality and safety of your hoist.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to significant structural issues. Additionally, consider using protective mats under the lift arms to minimize wear and tear on the floor, extending its lifespan and maintaining a safe working environment.

Regularly check the tightness of the anchor bolts, as loose bolts can cause damage to the concrete and render the hoist unsafe for operation. This simple maintenance step can prevent costly repairs and ensure safe and efficient usage of your hoist.

Think about applying a sealant to the concrete to protect against stains and moisture. Such protective measures can significantly extend the lifespan of your concrete floor while also enhancing its aesthetic appeal, making it a worthwhile investment for any garage.

Common Questions Regarding Car Hoist Installation and Concrete Specifications

Installing a car hoist requires careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some common questions related to the concrete requirements for various types of hoists.

What is the Recommended Minimum Concrete Thickness for a Two-Post Lift Installation?

For a two-post lift, the suggested minimum thickness for the concrete slab is 100mm. This depth provides sufficient strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer’s specifications, as certain models may necessitate thicker slabs for safe operation.

What Specifications Must a Concrete Slab Meet for a Four-Post Hoist Installation?

Typically, a four-post hoist requires a concrete slab thickness ranging from 100mm to 150mm. The slab must remain level and free of any cracks to ensure effective and safe operation. It is advisable to have a professional assess your floor to confirm that it meets the hoist’s installation requirements, ensuring peace of mind and safety.

Is It Safe to Install a Car Hoist on a Concrete Floor That Is Less Than 100mm Thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such a thin slab is likely to crack or fail under the weight, leading to significant safety hazards. If your existing floor does not meet the required thickness, you may need to add a new layer of concrete to achieve the appropriate depth for safe operation.

What Slab Thickness Is Generally Recommended for Vehicle Lift Systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during operation.

What Weight Can a 100mm Thick Concrete Floor Support During Hoist Operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when used with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It’s advisable to consult with a structural engineer for detailed load ratings tailored to your unique situation and requirements.

What Factors Should Be Considered When Calculating Concrete Thickness for Heavy Lifting Equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

  1. The weight of the heaviest vehicle you intend to lift
  2. The type of hoist being installed
  3. The soil conditions beneath your concrete slab
  4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking expert advice from our professionals at Metro Booths is a smart choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximize safety and operational efficiency.
